New Arrival

New Arrival

Wolf Tooth Components
Be the first to review
Wolf Tooth Components

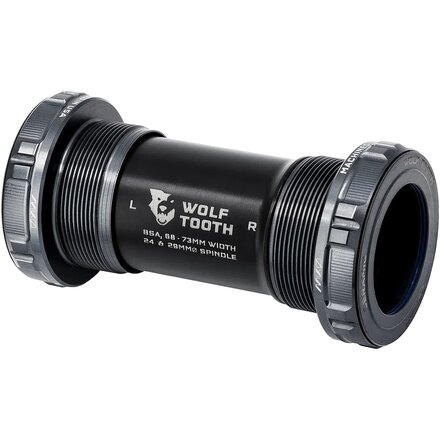

MK0 BSA Bottom Bracket

Be the first to review
$309.95

Style & Size:

Quantity



Join Summit Club+ and


Sealed ceramic speed in the Wolf Tooth MK0 BSA Bottom Bracket

The Wolf Tooth MK0 BSA Bottom Bracket brings ceramic speed to a design built to survive real riding, not just a lab test. Custom race-sealed ceramic bearings spin with low drag while resisting the water, mud, and grit that usually wreck softer bearing seals. Polymer spindle bushings separate the bearing race from the crank spindle, cutting out the metal-on-metal contact that causes bottom brackets to creak. An adjustable-width shell handles 68 to 73mm BSA shells in one part, with 83mm DH and 100mm fat bike sleeves available separately for wider builds.


What Our Gearhead® Experts Are Saying:

"I ran a set of these through a full mud season without a single bearing service, and they still spin as smooth as the day I installed them. The sealing does what most ceramic bottom brackets promise and don't deliver."


Details

  • Low-drag ceramic bottom bracket for all-condition riding
  • Adjustable shell fits 68 to 73mm BSA bottom bracket widths
  • Silicon Nitride bearings resist water, mud, and grit
  • Compatible with 24mm, 29mm DUB, and 30mm spindle cranksets
  • Installs with standard spline tools, no proprietary parts
  • Replacement bearings and bushings keep it serviceable
  • Machined and assembled in Minnesota, USA
  • Item #WFCA06F
Material
[cups] 6061-T6 aluminum, [shell] POM, [seals] NBR, urethane, [spindle bushings] POM, [bearing ball] Silicon Nitride, [bearing race] AISI 52100 chrome bearing steel, ACOSUR-ZNA corrosion-resistant coating
Shell Type
BSA threaded
Shell Width
68-73mm BSA
Threading
BSA
Spindle Type
[options] 24mm, 29mm DUB, 30mm
Crankset Compatibility
SRAM DUB, Shimano, and other 24mm, 29mm, and 30mm spindle cranksets
Includes
[24mm] 2x 2.5mm shell spacers, 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm spindle spacers, [29mm] 2x 2.5mm shell spacers, 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm spindle spacers, [30mm] 2x 2.5mm shell spacers, 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm spindle spacers
Claimed Weight
[24mm] 2.7oz (76g), [29mm] 2.9oz (82g), [30mm] 2.7oz (77g)
Activity
road cycling
Manufacturer Warranty
limited 1 year
Manufacturer Part Number
[24mm] WBB-BSA-24-MK0-SGR, [29mm] WBB-BSA-29-MK0-SGR, [30mm] WBB-BSA-30-MK0-SGR
