New Arrival
Vala CC XT Di2 Reserve E-Bike
Size:
Add Ons
Join Summit Club+ and
Santa Cruz Vala CC XT Di2 RSV E-Bike for trail riding and all-mountain adventures
What Our Gearhead® Experts Are Saying:
"The Vala climbs with enough efficiency that I stop wondering whether a trail is worth the effort. On the descent, 150mm of four-bar suspension and a 160mm fork keep everything planted and controlled without feeling like the bike is doing all the work for me."
Why We Like It

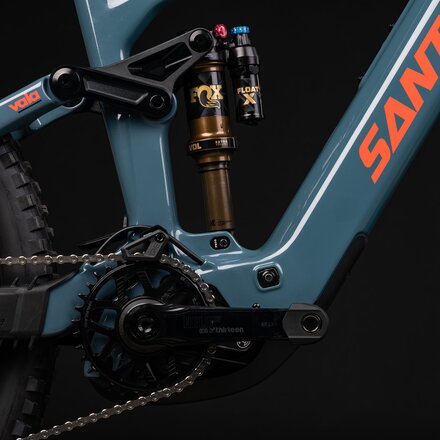

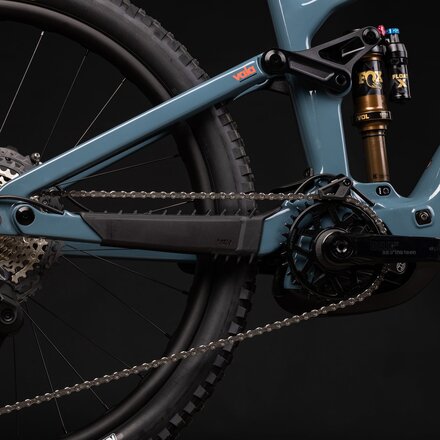

Santa Cruz built the Vala around a four-bar suspension platform rather than VPP specifically to accommodate the Bosch motor without compromising pivot placement or suspension performance. The result is a frame that pedals cleanly, stays active under braking, and handles the kind of rough trail feedback that exposes lesser suspension designs on long descents.
Heads up! We do our best to keep bike specs and images current, but occasional component changes can happen without warning, and sometimes the photos might not show the exact build you'll receive. If you want to double-check the details, our Gearhead® Experts are always here to help.
Details
- Trail and all-mountain E-bike for focused trail performance
- Bosch Performance Line CX motor — enough power and range for all-day trail riding without a shuttle
- Four-bar suspension, 150mm rear travel — independently adjustable geometry and progression flip chips
- Fox 38 Factory fork, 160mm — Grip X2 damper with high and low speed compression and rebound adjustment
- Slack 64.2° head angle — trail-focused geometry that's confident on steep terrain without sacrificing agility
- CC Carbon frame, MX wheel sizing — 29-inch front, 27.5-inch rear for trail handling on a full-power platform
- Shimano XT Di2 12-speed drivetrain — hardwired to the Bosch drive unit, no separate derailleur battery needed
- Reserve 30 HD carbon wheels — lightweight carbon rims on DT Swiss hubs front and rear
- Item #SNZK1RD
- Frame Material
- Carbon CC
- Suspension
- Four-bar
- Rear Shock
- Fox Float X Factory, 205 x 60mm
- Rear Travel
- 150mm
- Fork
- Fox 38 Factory, Grip X2
- Front Travel
- 160mm
- Headset
- Cane Creek 50 IS Integrated
- Shifters
- Shimano Deore XT M8250 Shift Switch
- Rear Derailleur
- Shimano Deore XT Di2 M8260, 12-speed
- Modes
- Eco, Tour, eMTB, Turbo
- Drive System
- Bosch Performance Line CX BDU38
- Motor Power
- 600W
- Battery Type
- Bosch PowerTube 600Wh
- Battery Energy
- 600Wh
- Max Torque
- 85Nm
- Max Speed
- 20mph
- Crankset
- e13 Helix Race Alloy e*spec
- Chainring Sizes
- 34t
- Crank Arm Length
- 160mm
- Bottom Bracket
- ISIS
- Cassette
- Shimano XT M8200
- Cassette Range
- 10-51t
- Chain
- Shimano XT M8100, 12-speed
- Brakeset
- SRAM Maven Silver
- Brake Type
- hydraulic disc, 6-bolt
- Rotors
- SRAM HS2, 200mm
- Handlebar
- OneUp Carbon Bar, 35mm clamp
- Handlebar Rise
- [small] 20mm, [medium, large, x-large, xx-large] 35mm
- Handlebar Sweep
- 9° back, 5° up
- Handlebar Width
- [small] 760mm, [medium, large, x-large, xx-large] 800mm
- Grips
- Santa Cruz house grips
- Stem
- Santa Cruz CNC
- Stem Length
- 40mm
- Saddle
- WTB Silverado Medium Fusion, CroMo SL
- Seatpost
- OneUp Dropper Post, 31.6mm
- Seatpost Travel
- [small] 120mm, [medium] 180mm, [large] 210mm, [x-large, xx-large] 240mm
- Wheelset
- Reserve 30 HD Carbon, 28H
- Hubs
- [front] DT Swiss 350, [rear] DT Swiss 350 DEG DF, MicroSpline
- Front Axle
- 15 x 110mm Boost
- Rear Axle
- 12 x 148mm Boost
- Tire Clearance
- 2.5in
- Tires
- [front] Maxxis Assegai 3C MaxxGrip EXO+, [rear] Maxxis Minion DHRII 3C MaxxTerra Double Down
- Tire Size
- [front] 29 x 2.5in, [rear] 27.5 x 2.5in
- Pedals
- not included
- Extras
- tool mount
- Claimed Weight
- 47.1lb
- Activity
- trail, enduro
- Manufacturer Warranty
- [frame] 5 years
