Yeti Cycles SB165 Turq Mountain Bike Frame

$4,000.00

Select Style & Size

Find your size

Height:
Inseam

Note: Actual inseam is not the same as pant inseam.

Recommended Size

We recommend a size in this bike.

EditMore details

Our size calculator is a starting point for finding the right size for you. To get personal advice talk to one of our fit experts at 1.888.276.7130 or chat now

  • Moss, L
    $4,000.00
  • Moss, M
    $4,000.00
  • Turquoise, L
    $4,000.00
  • Turquoise, M
    $4,000.00

Free Shipping on orders over $50*

SB165 Turq Mountain Bike Frame

Featuring 165mm of coil-shock-driven Switch Infinity suspension, a 180mm fork up front, super slack geometry, and playful 27.5in wheels, Yeti's SB165 is made to handle the rowdiest and most technical trails you can possibly find while remaining comfortable enough pedal back to the top for another lap (or five). It's a bike that's equally at home ripping the bike park as it is racing gnarly enduro courses, and it's just as willing to air over rock gardens as it is to plow straight through them. If this sounds to you like a recipe for pure fun, you'd be absolutely right, and the SB165 might just be the right bike for you.

The SB165 is essentially the replacement for the SB6, a bike that dominated the Enduro World Series for a number of years at the hands of Yeti's team riders. The SB165 builds on that foundation, but Yeti pushes the geometry into fully modern territory to stay ahead of the current crop of long-travel sleds. The reach has grown by 40mm in size large compared to the SB6, landing at a whopping 480mm, and the head angle was slackened by a full 1.5-degrees down to 63.5-degrees. These numbers are pretty close to what you'd find on downhill race bikes, which means riders can enjoy absolute confidence carrying speed through treacherous rock gardens and steep, washed-out chutes. The longer reach and slacker angles mean the wheelbase has also grown considerably compared to the SB6—a full 1.6-inches to be exact—but Yeti keeps that in check with a short offset fork that maintains excellent steering precision, ensuring you'll have no trouble threading the needle in tricky terrain. Yeti also did the requisite steepening of the seat tube angle, which at 77-degrees puts the rider in a nice forward riding position to help keep power to the pedals and the steering quick and nimble while climbing. While the SB165 is certainly a big bike, Yeti's progressive geometry and the remarkable efficiency of the Switch Infinity suspension platform means this bike climbs with the best of them (if not the best) in the uber-long-travel 27.5 category.

A Yeti wouldn't be Yeti without their undeniably awesome Switch Infinity suspension platform. It's plush throughout the 6.5-inches of rear travel, soaking up everything from chattery brake bumps to harsh landings and square-edged hits with smoothness and composure unmatched by most designs, yet it remains supportive when you're hammering on the pedals or pumping rollers to gain speed. The key to its performance is the translating main pivot, aka the Switch Infinity link, which switches direction as the bike moves through its travel, providing excellent anti-squat characteristics for superior pedaling performance, and ideal suspension characteristics as it gets deeper into the travel. For the SB165, Yeti tuned the leverage ratio for coil shocks, and considering this bike is meant to be ridden hard, the SB165 is equipped with one right out of the box so that riders can enjoy better heat management and more consistent performance on long descents. The refined leverage ratio also gives the bike better small-bump compliance, quicker ramp-up in the midstroke for a more playful and supportive feel, and better bottom-out control while still allowing full travel usage. Yeti was able to achieve this ideal leverage ratio in part due to the wishbone shock extender, which also allows for a lower standover height and room for a water bottle in the front triangle.

This model's frame benefits from Yeti's TURQ Series carbon fiber which consists of the highest quality materials Yeti can get its hands on and it offers up the perfect balance of stiffness, strength, and compliance while saving about 220g of weight over the Carbon-series frames. This contributes to a ride that's more composed over chunky sections of trail and surefooted in high-speed corners or anytime your stepping on the gas. Yeti paid particular attention to frame durability with the SB165, giving riders greater peace of mind when putting the bike through its paces on rugged trails. Yeti is confident enough in its carbon manufacturing process that they offer a lifetime warranty to the original owner of the frame.

  • Yeti's bit and burly long-travel shredder backs down from nothing
  • 165mm of terrain-gobbling Switch Infinity suspension travel
  • Fox DHX2 coil shock offers unmatched traction and control
  • Pair with a 180mm travel fork for maximum bump-absorption
  • 27.5in wheels respond quickly to rider input and boost the fun factor
  • 63.5-degree HTA for unwavering stability on high-speed descents
  • 77-degree STA puts you in a comfortable position for the climbs
  • Frame accommodates full-size water bottle and up to 2.6in tires
  • Item #YTIR19P

Frame Material
TURQ-series carbon
Suspension
Switch Infinity
Wheel Size
27.5in
Rear Shock
Fox Factory DHX2 Coil with 2-pos lever (climb switch), SLS spring [small] 400lb, [medium] 450lb, [large] 500lb, [x-large] 550lb
Rear Travel
165mm
Fork Travel
[recommended] 180mm

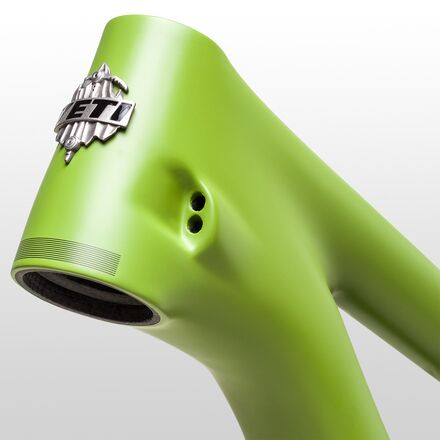

Head Tube Diameter
1-1/8 - 1-1/2in tapered
Headset Included
no, 41/52mm tapered
Bottom Bracket Type
PF92
ISCG Tabs
ISCG-05
Cable Routing
internal
Brake Type
post-mount 180mm
Seatpost Diameter
31.6mm
Seat Collar
36.4mm
Rear Axle
12 x 148mm Boost
Extras

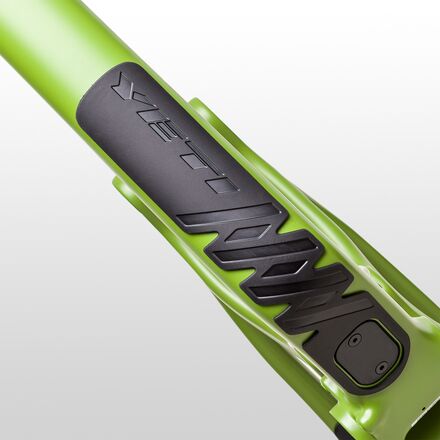

downtube protector, swingarm protector
Claimed Weight
8lb 5.3oz
Recommended Use
enduro, freeride, downhill
Manufacturer Warranty
lifetime

Tech Specs
