Ridley
Noah Fast Disc Brake Road Frameset

Be the first to review
Current price: $2,924.35 Original price: $4,499.00
35% off
Color:Red/Black/White

Size:

Size Chart

Quantity


Why We Like The Noah Fast Disc Road Frameset

Ridley was an early adaptor to "aero is faster" offering a Noah aero frameset that's seen steady upgrades since its introduction way back in 2006. Those early frames proved fast indeed and went on to help Robbie McEwen pull on the green jersey as the most consistent sprinter at the Tour as well as later versions piloting André Greipel to numerous race wins. Those victories didn't go unnoticed and the Noah's aerodynamic advantage quickly became the beacon that guided the frame development of many other builders. Over the years, the Noah has also improved, thanks to the experience Ridley engineers gained while developing new aerodynamic structures learned from in-house computer aided design, finite element analysis, and wind tunnel testing, along with real-world feedback from its sponsored pros on Team Lotto Soudal. We're honored to be carrying Ridley's latest version, the Noah Fast Disc Road Frameset, it's latest top-level aero model that brings refinements including more stiffness, better comfort, less weight, and of course the whole reason it was built in the first place, better aerodynamics.


The new Noah Fast is a stunning machine indeed. Every line, shape, curve, and detail is designed with aerodynamics in mind. While we're used to seeing Ridley's dedication to aero details in the past stem from integrated seat masts, cutouts at the fork blades and seatstays to reduce turbulence, and hidden, integrated brakes, this new design eschews such features as the engineers have learned how to build a faster Noah thanks to the firm investing in a state of the art wind tunnel (along with a couple of other Belgian brands in a collaborative effort dubbed "Flanders Bike Valley") and the time spent there. What we do notice immediately with this updated version is an ultra-slick seat post clamp, and an all-new fork, designed to work with the intergraded handlebar and stem combo to hide the cables.

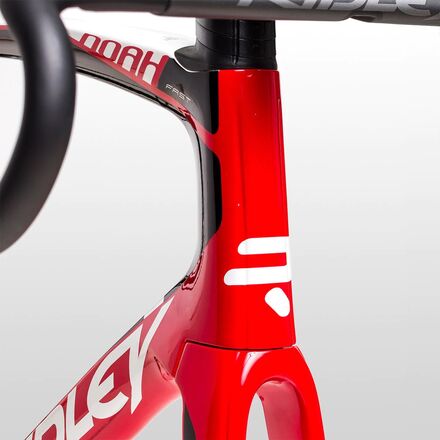

The key piece to this new fork design is Ridley’s new F-Steerer. Instead of a traditional round steerer tube, the profile on the Noah's steerer resembles that of a half-moon curvature, allowing Ridley to route the housing fully internal. Cables are able to run from the controls, through the integrated handlebar and stem and sneak down the side of the steerer tube where it's out of harm's way and doesn't interfere with turning the bar left to right. We're not sure exactly how much drag is saved by hiding the housing, but we do know it gives the bike a very clean look. Ridley claims that the redesigned steerer not only allows for the internal housing, it also increases its lateral stiffness for surefooted descending and wag-free sprinting. Final fork aero touches include small wings just aft of the dropouts to improve airflow and a crown that slots in nicely with the headtube and downtube.


One returning feature is Ridley's F-Surface Plus technology that we've seen incorporated on previous Noahs and its time trial model, the Dean. Essentially, it's the application of a textured surface that's akin to dimples on a golf ball, that's strategically placed in high-pressure areas. The dimples create a tiny bit of turbulence causing the airflow to stay better attached the object and follow the shape of the tube. This allows the frame to simply slice through the air and works even better the faster you go.


To this, Ridley adds its F-Tubing, essentially fluted indentions on the leading edge of the Kammtail aero downtube. These notches, much like the F-Surface treatment, tricks the air into becoming more turbulent causing the passing air to better follow the shape of the tube which improves its aerodynamic efficiency by minimizing wind drag, letting you go faster with fewer watts to the tune of a 4.03-percent savings at 50 km/h. Additionally, the blunt Kammtail shape also helps minimize frame weight while increasing stiffness.


Ridley claims that the new fork, seatpost, and handlebar saves around 250 grams over previous Noahs letting you build up this disc brake version close to the UCI weight limit without the need of super lightweight (read: fragile) components, for a bike that's simply faster everywhere. New Lotto signing Caleb Ewan will certainly enjoy the increased stiffness of the bottom bracket and head tube over its predecessor, helping to channel every watt from the cranks directly into the rear wheel on those fast sprint finishes. And thankfully the days of speed and aero efficiency being mutually exclusive of comfort is gone and the new lowered seat stays offer a bit more vertical compliance for all-day comfort.


Ridley continues to source its carbon fiber from Toray, renowned in the cycling and aerospace industry as a provider of the world's highest quality carbon fiber. For this model, Ridley uses 60T-40T-30T High Modulus Unidirectional Carbon and places the most pliable 30-ton, where it's needed for frame flex, comfort, and resiliency and 60-ton where boosting frame stiffness is necessary.


Details

  • Ridley's latest aerodynamic, disc road frameset, improved everywhere
  • Top quality Toray carbon fiber reduces weight and improves stiffness
  • FAST F-Surface treatment and F-Tubing smooths airflow
  • Oversized PF30 bottom bracket shell efficiently transfers power
  • Internal cable routing looks great and cheats the wind
  • Compatible with both mechanical and electronic drivetrains
  • Forza integrated bar and stem aids aerodynamics
  • F-Steerer fork allows cables to run internally down the steerer
  • Item #RID009G
Frame Material
60T-40T-30T High Modulus Unidirectional Carbon
Wheel Size
700c
Fork
Noah Fast
Head Tube Diameter
1-1/8 - 1-1/4in tapered
Headset Included
FSA IS
Bottom Bracket Type
PF30
Cable Routing
Internal
Front Derailleur Mount
Braze-on
Brake Type
Flat-Mount disc (140-160mm rotors)
Compatible Components
Mechanical, Electronic drivetrains
Seatpost
Noah Fast Aero
Seatpost Diameter
proprietary
Front Axle
12mm Thru-Axle
Rear Axle
12 x 142mm
Tire Clearance
28mm
Claimed Weight
[medium] 2lb 4oz (1020g)
Activity
road cycling
Manufacturer Warranty
5 years
