  • SRAM XX1 BB30 Crankset - 156 Q-Factor 170mm, BB30, 156Q
  • SRAM XX1 BB30 Crankset - 156 Q-Factor 175mm, BB30, 156Q

Available colors

  • SRAM XX1 BB30 Crankset - 156 Q-Factor 170mm, BB30, 156Q
  • SRAM XX1 BB30 Crankset - 156 Q-Factor 175mm, BB30, 156Q

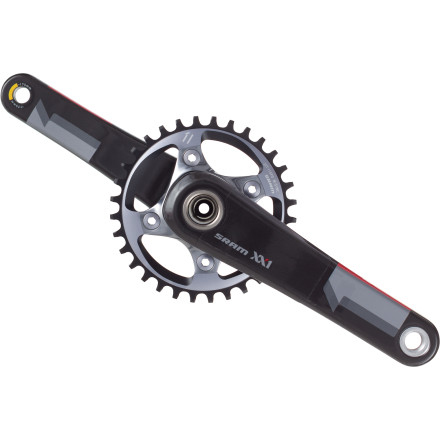

SRAM XX1 BB30 Crankset - 156 Q-Factor

sale $274.99 $412.00 33% off

Free 2-Day shipping on orders over $50*

Select style & size:

Select options
  • Select options
    • 170mm, BB30, 156Q, 34t
      Sale  $274.99
    • 170mm, BB30, 156Q, 36t
      Sale  $274.99
    • 175mm, BB30, 156Q, 34t
      Sale  $274.99
    • 175mm, BB30, 156Q, 36t
      Sale  $274.99
    in stock
    0 5 0

    Be the first to review


    A revolution at your feet.

    SRAM's pursuit of seamless component integration has led to it continually innovating the component industry -- case in point being the XX1 group. As a whole, XX1 works as an efficient machine, but individually, each component plays a vital role in making this group the revolutionary that it is. The XX1 BB30 Crankset with 156mm Q-Factor exemplifies this by providing you with a nearly customized setup and a Zen-like simplicity.

    Carbon fiber arms have been mated to a redesigned aluminum spider for a lightweight crank arm that doesn't require a finessing of parts in order to make an optimal single-ring setup. The X-SYNC chainring is designed for maximum chain control, with each tooth being CNC-machined in order to support the chain's inner- and outer-links. This machining process provides a variable thickness from tooth-to-tooth, so the chain and chainring essentially lock together as you pedal. However, the locking of the two doesn't inhibit pedal efficiency, and it eliminates the commonplace ailments associated with running a single-ring up front. Additionally, this system provides you with a liberation from chain guides. SRAM even went as far as to say that you have a better chance of dropping your chain with a front derailleur than you do with the XX1 crank and chain combo.

    The new chainring's 76 bolt circle diameter sets it apart from others in the SRAM catalog. This diameter emanated from a functionality standpoint, not as an afterthought of the new, universal spider shape. Its design makes it simple to remove the chainring for either maintenance or ratio changes. Gone are the days of finagling the chainring off of the spider -- just unscrew the bolts, move the chainring off, and you'll have the replacement on in minutes. Even better, SRAM has created six different chainring sizes that are compatible with the XX1 spider. Now, you're able to dial-in your range to match the trail, either beforehand or on-the-fly.

    And though the XX1 crankset is designed to work optimally in tandem with the XX1 group, you're able to use the crank and a 10-speed chain in order to enjoy the benefits of running a single-speed or one-by-10 setup.

    The SRAM XX1 BB30 Crankset with 156mm Q-Factor is available in the color Black and with either a 170 and 175mm crankarm length. Additionally, each length is available with your choice of a 30, 32, 34, 36 or 38 tooth chainring. Many frames are limited to a 32t middle ring. If you’re unsure, please check the manufacturer’s recommended chainring spec to avoid compatibility issues.

    • Item #SRM0545

    Tech Specs

    Arm Material
    carbon fiber
    Arm Length
    170 mm, 175 mm
    Chainring Sizes
    32 - 38 t
    Bolt Circle Diameter
    76 mm
    Bottom Bracket
    SRAM BB30
    BB Type
    BB Threading
    Compatible Components
    SRAM XX1
    Actual Weight
    170mm, BB30, 156Q, 34t: 552g; 170mm, BB30, 156Q, 36t: 552g; 175mm, BB30, 156Q, 34t: 552g; 175mm, BB30, 156Q, 36t: 552g
    Recommended Use
    Manufacturer Warranty
    2 years
