Control your speed. .

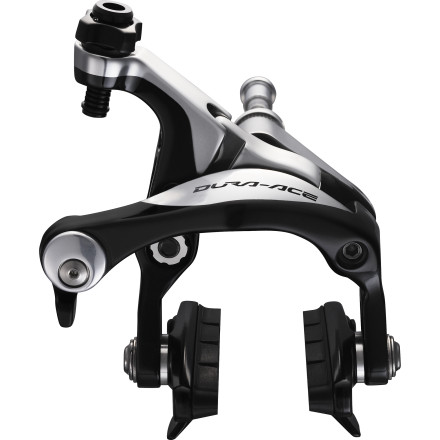

Lighter operation, stronger modulation, and an aesthetic design that's unmistakably Dura-Ace, the BR-9000 is as good as Shimano gets.

Although the Dura- Ace 9000 Groupset is best known for its 11-speeds, when you're flying down the descent, the only thing you'll be thinking about are your brakes. The Shimano Dura-Ace BR-9000 BRake Calipers have been redesigned to function up to par with the rest of the lauded groupset.

For starters, Shimano pulled away from using the mounting bolt as the pivot bolt, as has been down the overwhelming majority of the time. They opted for the "new" dual pivot design making its way into brake caliper design which places the brake arm symmetrically over the wheel. The pivot action is obtained by a second rolling cam designed into the brakes. And while the cable is still located to one side of the calipers, braking action results in equal pressure being applied to both sides of the brakes. Furthermore, a twin bearing system keeps the braking action smooth, light and more importantly predictable-it does this primarily by reducing friction.

With the new center alignment, the arms are closer to the rims. And when combined with the equal pressure action, modulation is increased for added control while descending. The Shimano BC-9000 cables are a polymer-coated, low friction cable which results in lighter actuation. They come with brake pads that accommodate up to a 25mm tire. Shimano produces and aftermarket brakepad designed for riders who prefer wider, 28mm tires.

The Shimano Dura-Ace BR-9000 Brake Calipers are available in one size and one color. The calipers are only available as a pair and are recommended for use with the Shimano ST-9000 STI Levers.

  • Road bike compatible
  • Dual-pivot design
  • Brakes are sold as a pair only
  • Thinner brake pads for 28mm tires available separately
  • Compatible with Shimano 9000 STI shifters

Share your thoughts



No file chosen

Rather attach a photo from another website?

Rather attach a photo from your computer?

    Add a:
  • Share a photo
  • Share a video


Only jpg, jpeg, png, gif or bmp files please.

Now review from the App.Download

Here's what others have to say...


solid smooth stopping

  • Familiarity:I've put it through the wringer

There probably isn't a better caliper brake out there. I run carbon wheels and with carbon pads I feel like I stop better than I ever had.


yes, better braking than the 7900

  • Familiarity:I've put it through the wringer

I was skeptical spending the money to upgrade my 7900 calipers to these but there really is a big difference in braking power, and not just because I started with fresh pads. :)

I have been running these with 7900 levers with no issue. Worth the upgrade for sure.

Unanswered Question

will the 9000 brake pads work with both carbon and alloy wheels?

Unanswered Question

Will these work with the HED belgium plus...

Will these work with the HED belgium plus rims (25mm)?


Holy Braking POWER!

  • Familiarity:I've put it through the wringer

The modulation in these brakes and the improved braking power is incredible!! Dura Ace 9000, is by far the best gruppo on the road I feel!

Will this be compatible with the Shimano...

Will this be compatible with the Shimano 105 (2013) levers?

These are compatible with all the 11 spd shimano systems but Shimano hasn't approved them for use with the 10 speed brake levers.

I found this information recently - just FYI -

?Compatible with STI and brake levers that are Super SLR enabled (e.g. Dura Ace Di2 7970, Dura Ace 7900, Ultegra Di2 6770, Ultegra 6700, 105 5700, Tiagra 4600)
