Pinarello Dogma 2 / Campagnolo EPS Super Record 11 Complete Bike - 2012

Community Rating | 2 Reviews

Tech Specs

Frame Material:	carbon fiber
Dropout Type:	vertical
Steer Tube Type:	carbon fiber
Fork Material:	carbon fiber
Fork Blade Shape:	aero blade
Wheelset:	Campagnolo Shamal Ultra 2-Way
Front Derailleur:	Campagnolo Super Record ESP
Rear Derailleur:	Campagnolo Super Record
Cage Length:	short
Shifters:	Campagnolo Super Record 11 ESP
Crankset:	Campagnolo Super Record 11
Bottom Bracket:	Campagnolo Super Record BB Cups
Brake Calipers:	Campagnolo Super Record Skeleton
Handlebar:	MOst Talon
Bar Tape:	cork
Stem:	MOst Talon 1K
Chain:	Campagnolo Record
Tires:	Continental Dogma
Tire Size:	700 c x 23 mm
Seatpost:	Pinarello
Seat Collar:	alloy clamp
Saddle:	MOst Panther
Recommended Use:	cycling, training, racing
Manufacturer Warranty:	3 years on frame

Current Color

Available Colors/Styles

top

bottom

Detail Pics

left

right

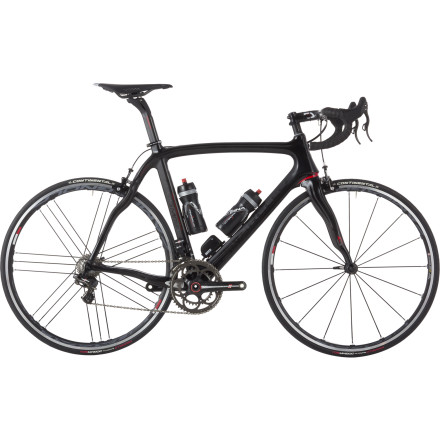

For all the flash and zoot that accompanies this high-profile Italian pairing, there's something about the Pinarello Dogma 2/Campagnolo EPS Super Record 11 Complete Bike that is stealth. It's a bike that hides its bona fides in plain sight. It's a looker, with sumptuous curves, a lustrous finish, and electronic shifting. The Black on Black finish gets more interesting as you study it, and it has an intriguing red ring around the lower end of the head tube, as if the bike is glowing in standby mode. This color concept doesn't call attention to itself like the Movistar or Team Sky versions do. Instead this highly-refined finish speaks with a quiet, muscular confidence even when standing still. And when you stomp over a short rise, shift effortlessly across the cassette, and carve the descent like your bike is on rails, people will take notice and you'll have an ear-to-ear grin as those behind you scrabble to keep up.

Aside from the color, this is the same Dogma 2 frameset that the sponsored ProTour teams use. And it's similar to the Dogma 2 that our own Competitive Cyclist pro team uses; the difference is that this frame is configured for internal electronic wiring rather than mechanical cables. There is a custom mount between the down tube water bottle bosses and the seat tube so that the battery/brain of the Campy system can sit on the bike without a bulky and unattractive mounting plate.

We eyeballed this frame aplenty, even before the bike had been finished with Campagnolo EPS. There have always been plenty of reasons to want one. There's the asymmetry of the frame that ably resists the forces you put on the bike and directs your power from the crankset to the wheel. There's the redesigned front end that tracks better, thanks to a new leg design and 1.5" lower head tube bearing that increases in front end stiffness by 19%. There's the wind-tunnel-shaped tubes of the bike that give you a 6% improvement in aerodynamic efficiency. The Dogma 2 is light, stiff, and designed to hide from the wind, all of which translate into riding faster.

Now that it's dressed with Campagnolo Super Record EPS (Electric Power Shift), there is that much more to fawn over. EPS is the newly-released, no compromises electronic group from the artisans in Vincenza. They Pinarello Dogma 2/Campagnolo EPS Super Record 11 Complete Bike Detail mix their incredible Super Record skeleton brake calipers (dual-pivot front, single-pivot rear), super-light Super Record compact crankset (50/34 rings), and 11-cog Super Record cassette (11-25) with electronic Super Record Ergopower levers and derailleurs.

If you haven't been following the story of Campagnolo electronic, know that it has been in development for over 20 years, that it has already won ProTour races, that it has handled not only the abuse of the cobbled classics, scaled the toughest peaks in Europe, but also faced down extreme heat, extreme cold, extreme precipitation, and more. It would have been on the market six years ago, but a team mechanic speeding with bikes on the roof at 150kph managed to breach the seals, necessitating a redesign. Highlights of the group include Ergopower levers, identical in shape and feel to Campagnolo's mechanical Ergopower. They give you a click you can feel and hear as you shift. You'll also get two characteristic Campagnolo functions: you can shift up or down the entire cassette in one motion, and you can trim the front derailleur to avoid annoying noises or drag from the drivetrain. The EPS system assures an average 2000km battery life and is certified to last 500 charge cycles (that's over 41 years if you charge it once a month). It weighs a claimed 2098g for the entire group, making it the lightest electronic shifting group on the market.

This bike keeps on going. The wheels are Campagnolo's Shamal Ultra 2-Way Dark. It's their top-of-the-line aluminum-rimmed wheelset that can be ridden with tubes or tubeless tires, and this version looks brilliant with the stealthy black-on-black logo scheme. The wheels have 16 radial spokes in front, with 21 spokes arranged in their Mega G3 pattern in the rear. The front rim is 24mm deep to ensure stable handling in gusty winds, but the rear is pumped up to 30mm for better aerodynamics. The wheels are completed with Dogma-labeled Continental tires, GP Attack in the front and GP Force on the rear.

The handlebars and stem finishing the bike are built into a single unit. It is the MOst Talon 1k compact integrated handlebar and stem. The bars have an ergonomic shape and measure out to a 125mm reach and 80mm drop. The combo is molded mostly with unidirectional carbon-fiber, though it's finished with a carbon 1k weave. The integrated steerer tube clamp is made from forged aluminum alloy to add security and durability in this critical zone. MOst is Pinarello's line of components, and this integrated combo is used by Movistar on their team bikes.

Keeping your body in position over the bike is a MOst Panther saddle sitting atop the Dogma 2's proprietary aero carbon-fiber seatpost. The Panther is a sculpted beauty with carbon-fiber rails and a Lorica cover. It weighs in like a climber, a claimed140g.

The Pinarello Dogma 2/Campagnolo EPS Super Record 11 Complete Bike is Black on Black. The base color is matte while logos and accents are in high gloss. The stem length, handlebar width, and crank lengths are all sized to match the frame size. It is available in 12 sizes from 42 to 62cm, all with 700c wheels.
