Titus El Guapo Crank It Up Kit Complete Bike - 2009
2009 Model No Longer Available
Detail Views
Be the first to upload your photo of the El Guapo Crank It Up Kit Complete Bike. >

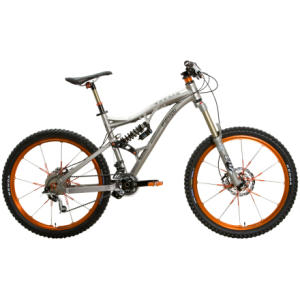

Titus El Guapo Crank It Up Kit Complete Bike - 2009
With Crank Brothers goodies, and matching anodized orange hardware the Crank It Up Kit turns the brawny Titus El Guapo into a mountain leveler with lady-killer looks. A Joplin seatpost, TALAS fork, and a double chainring make climbing with a heavy-duty rig less of a burden, but that aside, the Guapo’s six-inches of travel and solid chassis should kill any climbing woes with anticipation for the down. Thanks to that rock-solid platform, railing corners at high speeds becomes second nature. With razor-sharp reflexes, the Guapo loves to be on the edge of traction, and Titus added the new Crank Brothers Iodine wheelset for violent acceleration when pinning it out of turns. While high-speed trail maneuvers are one thing, staying composed while in flight is another. A sloping top tube and wide bars make negotiating air over gaps and during drops a straightforward affair. Form follows function, and Titus has had the Guapo dialed on function since its inception. Now it’s dressed to impress.
- Advanced Thermal Forming (ATF) for elaborate tube shapes and butting to achieve maximum strength-to-weight ratio
- Four oversized main pivot bearings for strength and minimal service intervals
- FOX DHX RC2 Coil and FOX Talas 36 level trail obstacles and the added bonus of travel adjustability on the fork make negotiating climbs easier
- Crank Brothers Iodine Wheelset for quick acceleration and strength when visiting send city
- Crank Brothers Joplin seatpost for slamming the seat down and dropping into the nasty
- e.13 DRS Chainguide keeps the chain where it belongs and offers both 22- and 32-tooth capabilities
- Magura Louise brakes put the squeeze on speed
Bottom Line: The handsome one in a Zoot suit.
Talk shop with all the gear freaks out there: ask 'em questions, upload/browse photos, and give your 2¢.
Change me.
Tech Specs:
- Frame Material, Main Triangle:
- 6000 Series Aluminum
- Seat stay Material:
- Aluminum
- Chain stay Material:
- Aluminum
- Suspension Linkage Material:
- Forged, Machined Aluminum
- Pivot Type:
- [Main] 4 Cartridge Bearings, [SS/CS]Bushing, [Link] Cartridge
- Rear Travel:
- 6.1in (155mm)
- Suspension:
- FSR
- Shock Included:
- Fox DHX RC2 Coil
- Headset:
- 1.5in
- Integrated Chain Guide:
- ISCG 05, welded tabs
- Rear Axle:
- 135 x 10mm
- Fork:
- FOX Talas 36
- Wheelset:
- Crank Brothers Iodine
- Front Derailleur:
- Shimano SLX
- Rear Derailleur:
- Shimano XT
- Shifters:
- Shimano SLX
- Crankset:
- FSA Gravity Light
- Teeth:
- 22 / 32T
- Crank Arm Length:
- [M] 175mm
- Bottom Bracket:
- FSA Mega EXO
- Brake Levers:
- Magura Louise
- Brakes:
- Magura Louise BAT
- Rotors:
- 180mm/160mm
- Headset:
- FSA Xtreme Pro
- Head Angle:
- 68
- Handlebar:
- Titus 7075
- Handlebar Width:
- 660mm
- Handlebar Rise:
- 30mm
- Grips:
- ODI Ruffian lock-On
- Stem:
- FSA Gravity
- Stem Length:
- 60mm
- Stem Angle:
- 6 deg
- Chain:
- Shimano HG73
- Chain Guide:
- e.13 DRS
- Cassette:
- Shimano SLX
- Range:
- 11-34T
- Tire Front:
- Kenda Nevegal
- Tire Front Size:
- 26 x 2.35in
- Tire Rear:
- Kenda Nevegal
- Tire Rear Size:
- 26 x 2.35in
- Tubes:
- Presta
- Seatpost:
- Crank Brothers Joplin
- Seatpost Diameter:
- 30.9mm
- Cables / Housing:
- Shimano
- Saddle:
- Fi’zi:k Gobi XM
- Seat Collar:
- Quick release
- Pedals:
- Crank Brothers Acid
- Weight:
- 33lb 01oz (14973.1g)
- Recommended Use:
- XC, all-mountain
- Manufacturer Warranty:
- 3 Years
