Detail Images

  • Magura USA - Quick Mount Adapter - One Color

Current Color

  • Magura USA - Quick Mount Adapter - One Color

Magura USA Quick Mount Adapter

$10.00 - $12.00

Free 2-Day shipping on orders over $50*

Select your style & size:

Select options
  • Select options
    • One Color, QM10
      $10.00
    • One Color, QM40
      $12.00
    • One Color, QM11
      $10.00
    • One Color, QM42
      $12.00
    • One Color, QM12
      $10.00
    • One Color, QM41
      $12.00
    • One Color, QM43
      $12.00
    • One Color, QM5
      $10.00
    • One Color, QM26
      $12.00
    • One Color, QM27
      $12.00
    • One Color, QM7
      $10.00
    • One Color, QM28
      $12.00
    • One Color, QM8
      $10.00
    • One Color, QM9
      $10.00
    552

    2 Reviews

    Details

    Mount your Maguras.

    Unless you're attaching your Magura brake to a 160mm post mount on your fork, you'll need a Quick Mount Adapter, known by the initialism QM. Magura decided with the proliferation of choices available to riders, it makes the most sense to provide the brakes without brackets and have the customer choose the right bracket(s). Below you'll find a guide to determine which is right for you. Happy hunting and safe stopping.

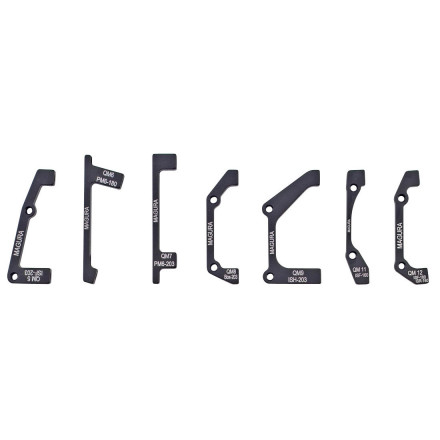

    QM5 bracket — 203mm rotor, front IS mount
    QM7 bracket — 203mm rotor, front post mount, two-piston
    QM8 bracket — 203mm rotor, RockShox BoXXer
    QM9 bracket — 203mm rotor, rear IS mount
    QM10 bracket — 180mm rotor, rear IS mount, two-piston
    QM11 bracket — 160mm rotor, front IS mount or 203mm rotor, front IS 203mm mounts, FOX 40
    QM12 bracket — 180mm rotor, front IS mount or 160mm rotor, rear IS mount
    QM20 bracket — Replaced by QM40
    QM40 bracket — 180mm rotor, post mount
    QM41 bracket — 180mm, rear IS mount, four-piston
    QM42 bracket — 203mm, post mount, four-piston
    • A brake mount adapter for Magura mountain bike disc brakes
    • Ensures the right fit for proper stopping
    • Magura has earned its place as a hydraulic brake legend
    • Item #MGR000A

    Tech Specs

    Material
    aluminum
    Attachment Type
    bolt-on
    Recommended Use
    mountain bike
    Manufacturer Warranty
    5 years

    Tech Specs

    • Reviews
    • Q & A

    What do you think about this product?

    Have questions about this product?

    Unanswered Question

    I have confirmed with Magura that I will need the QM42 for my Pike 160mm fork if I would like to use the Storm SL 203mm rotor. What I am not sure about is the compatibility of the QM42 with my caliper, I am using an SRAM Guide RSC caliper. Will the mounting holes align?

    Will the QM26 adapter work to convert 180mm post mount to 203mm post mount? I have a 2016 Fox float 36 and want to use a 203mm rotor. The Shimano SM-MA-F203P/PM is out of stock everywhere (including here at backcountry for 9 weeks!).

    That is a great question. I have done some homework on your disk brake adapter question, and looks like you need the SM-MA-F180, P/P Front adapter for that fox 36 fork. If you have any additional questions, please feel free to e-mail me at dmyers@backcountry.com .
