Without pedals, riding a bike would be a lot more difficult.

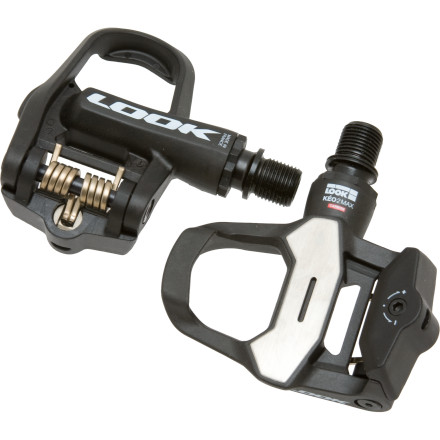

In mountain biking, people talk of privateers. That's most of the world; people who buy their own stuff. And when counting pennies and doing spreadsheet calculations and analyzing cost-per-gram, the less flashy parts -- the Chorus', Force's, Ultegra's of the world, often offer 99% of the performance at 50-75% of the price. The Look Keo 2 Max fits in the performance without the price slot. It does everything the Keo 2 Max Carbon does, just without the carbon-fiber pedal body.
One great feature of the Keo 2 is the stainless steel wear plate atop the center of the pedal body. This adds tremendous durability to the system. But they did more than add a cap to their pedals. They redesigned the shape so it is wider, amongst the widest clipless pedal around. This 57mm platform width helps increase the surface area that contacts the cleat to 340mm², but that doesn't effect the cornering clearance as the pedal body is narrower on the bottom.
Look also went to town on their axle. They increased the diameter to 12mm on the crank side for greater stiffness. And they kept the stack height to a minimum, 15.7mm -- which necessitated two roller bearings on the crank side, with a needle bearing on the outside of the spindle.
The Keo 2 Max pedal bodies are made from a polyamide composite. The wear plate and axle are both stainless steel. The Q-Factor is 53mm, and can be increased to 55mm with the use of a 2mm spacer that goes between the spindle and the crank (sold separately). The release tension can be adjusted from 9-15Nm. There are three float options for the cleats, fixed aka zero float (Black) cleats, 4.5-degrees float (Grey) cleats, and 9-degrees of float (Red) cleats. The pedals come with the Grey Keo Grip cleats. The pedal body comes in either Graphite or White with a Black retention bar. There is a two-year warranty on the pedals. The Look Keo 2 Max Carbon Pedals have a claimed weight of 130g per pedal or 328g per pair, which includes cleats and hardware.
- Carbon-injected pedal body and stainless steel cleat contact area for added reliability
- Low pedal stack height for excellent power transfer
- Q-factor may be extended by 2mm using additional spacers available separately
Terms And Conditions
This Usage Agreement (the "Agreement") governs your conduct while using various services on the web site Backcountry.com and its affiliate web sites (collectively, the "Site"). All references to "we," "us," and "our" shall mean Backcountry.com and all references to "you" and "your" shall mean the user of the Site and Site Services. This Agreement applies to various services and activities on the Site as well as to gear review and product ratings (collectively, "Site Services"). Please read this Agreement carefully.
BY ACCESSING, BROWSING, AND USING THE SITE, ANY SITE SERVICES AND OTHER SERVICES THEREIN, YOU AGREE TO BE BOUND BY THIS AGREEMENT AND ITS TERMS. IF YOU DO NOT AGREE TO THIS AGREEMENT OR ANY SUBSEQUENT MODIFICATION THEREOF, DO NOT ACCESS, BROWSE OR OTHERWISE USE THE SITE OR SITE SERVICES, INCLUDING THE SUBMISSION OF ANY REVIEWS OR COMMENTS.
Any comments, reviews (including gear reviews and product ratings), posts, feedback, questions, answers, notes, messages, images, video, audio, materials, documents, data, graphics, ideas, suggestions or other communications (collectively, "User Content") you submit on the Site are not private or proprietary. By submitting User Content on or through the Site, you grant, assign and transfer to Backcountry.com all of your rights, title and interest, including without limitation, all intellectual property rights and moral rights, in and to such User Content. To the extent the preceding assignment and transfer is ineffective, you hereby grant Backcountry.com an irrevocable, royalty-free, worldwide, perpetual right and license to use, copy, modify, adapt, display, publish, archive, store, distribute, reproduce and create derivative works based upon such User Content, in any form, media, software or technology of any kind now existing or developed in the future.
By submitting such User Content on or through the Site, you are confirming that (a) you are the sole author of the User Content and the User Content originated with you and not copied in whole or in part from any other work; (b) you have obtained all necessary permissions associated with the User Content, including without limitation permissions relating to copyrights, trademarks, rights of publicity and/or rights of privacy; (c) the User Content does not contain hate speech or profanity and is not unlawful, threatening, abusive, harassing, tortuous, defamatory, vulgar, libelous, obscene, racially, ethnically or otherwise objectionable, an invasion of another's privacy, or otherwise in violation of this Agreement; (d) that you are not a minor and have the legal right and capacity to enter into and comply with this Agreement; (e) such User Content does not and will not, in any way, violate or breach any of the terms of this Agreement; and (f) Backcountry.com shall not in any circumstances be required to pay or incur any sums to any person or entity as a result of its use or exploitation of the User Content.
With respect to your conduct on the Site or while using the Site Services, you agree not to: (a) attempt to disguise the origin of any User Content transmitted to the Site Services whether through the Site or any third party site; (b) act in any manner that negatively affects other users' ability to use the Site and Site Services; (c) impersonate any person or entity, including without limitation, a manufacturer or owner of any product, or falsely state or otherwise misrepresent your affiliation with a person or entity; (d) interfere with the Site or Site Services, or servers or networks connected to the Site or Site Services, or disobey any requirements, procedures, policies, or regulations of networks connected to the Site or Site Services; (e) upload, post, or otherwise transmit any User Content that with respect to the Site Services: (i) is not relevant to the product, service, person or entity being reviewed; (ii) you do not have a right to transmit under any law or under contractual or fiduciary relationships (by way of example but not limitation, inside information, proprietary and confidential information learned or disclosed as part of employment relationships or under nondisclosure agreements); (iii) contains software viruses or any other computer code, files or programs designed to interrupt, destroy or limit the functionality of any computer software or hardware or telecommunications equipment; or (iv) is unsolicited or unauthorized advertising, promotional materials, "junk mail," "spam," "chain letters," "pyramid schemes," or any other form of solicitation.
User Content does not reflect the views of Backcountry.com, and Backcountry.com does not represent or guarantee the truthfulness, accuracy, completeness, timeliness, integrity, quality or reliability of any User Content, nor does Backcountry.com endorse or support any opinions expressed in any User Content. In no event shall Backcountry.com have or be construed to have any responsibility or liability for or in connection with any User Content, Any gear reviews and/or product ratings submitted on the Site, if displayed, are displayed for entertainment and informational purposes only. Under no circumstances will Backcountry.com be liable in any way for any User Content, including but not limited to, any errors or omissions in any User Content, or for any loss or damage of any kind incurred as a result of the use of any User Content posted, emailed or otherwise transmitted via the Site or Site Services.
If Backcountry.com determines, in our sole and absolute discretion, that you or any User Content you submit violates this Agreement, we reserve the right, at any time, without notice and without limiting any and all other rights Backcountry.com may have under this Agreement, to: (a) refuse to allow you to submit further User Content; (b) remove and delete your User Content; (c) revoke your registration and right to use the User Content Submission Features; and (d) use any technological, legal, operational or other means available to enforce the terms of this Agreement, including, without limitation, blocking specific IP addresses or deactivating your registration, access to the Site and Site Services using your e-mail address, and your user name and password. Without limiting the foregoing, once User Content is submitted to the Site, Backcountry.com may take any or no action with respect to such User Content, including without limitation, deleting, editing, modifying, rejecting, or refusing to post such User Content, but is under no obligation to offer you the opportunity to edit, delete or otherwise modify User Content once it has been submitted. Backcountry.com shall have no duty to attribute authorship of User Content to you and shall not be obligated to enforce any form of attribution by third parties.
If, despite the foregoing assignment and transfer of rights in the User Content, it is determined that you retain moral rights (including the rights of attribution or integrity) in the User Content, you hereby declare that: (a) you do not require that any personally identifying information be used in connection with the User Content or any derivative works of or upgrades or updates thereto; (b) you have no objection to the publication, use, modification, deletion and exploitation of the User Content by Backcountry.com or its licensees, successors or assigns; (c) you forever waive and agree not to claim or assert any entitlement to any and all moral rights of an author in any of the User Content; and (d) you forever release Backcountry.com, and its licensees, successors and assigns from any claims that you could otherwise assert against Backcountry.com by virtue of any such moral rights.
You are prohibited from violating the security of any system or network compromising the Site or the Site Services, including but not limited to the following: (a) unauthorized access to or use of data, systems, or networks, including any attempt to probe, scan or test the vulnerability of the Site or Site Services or to breach security or authentication measures; (b) unauthorized monitoring of data or traffic on the Site or of the Site Services; (c) interference with the Site or Site Services including without limitation, any type of flooding technique or deliberate attempt to overload the system such as denial or service attacks; (d) forging of a message header or any part of a message header; or (e) using manual or electronic means to avoid any use or access limitation placed on this Site or the Site Services. Such violations may result in criminal or civil liability.
Backcountry.com reserves the right to report any activity or persons that Backcountry.com suspects has violated any law or regulation to appropriate law enforcement officials, regulators, or other appropriate third parties (including the disclosure of appropriate subscriber information). Backcountry.com may also cooperate with appropriate law enforcement agencies to assist in the investigation and prosecution of any illegal conduct. Indirect or attempted violations of this Agreement and actual or attempted violations thereof by a third party on behalf of any user shall be considered violations of this Agreement by such user.
BACKCOUNTRY.COM DOES NOT ENDORSE THE USER CONTENT, IS NOT RESPONSIBLE FOR THE USER CONTENT AND SPECIFICALLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY TO ANY PERSON OR ENTITY (INCLUDING, WITHOUT LIMITATION, PERSONS WHO MAY USE OR RELY ON SUCH USER CONTENT) FOR ANY LOSS, DAMAGE (WHETHER ACTUAL, CONSEQUENTIAL, PUNITIVE OR OTHERWISE), INJURY, CLAIM, LIABILITY OR OTHER CAUSE OF ANY KIND OR CHARACTER BASED UPON OR RESULTING FROM ANY USER CONTENT PROVIDED THROUGH THIS WEB SITE.
Share your thoughts
The Look Keo 2 Max pedals do an acceptable job as a clipless road pedal. They are easy to clip out of and provide a stable pedaling platform. However, I have found that while they are hard to fault, they don't really excel in anything like Speedplay's do. The Speedplay Zero's I also own are lighter, offer more float, great corner clearance and double sided entry. There really wasn't anything that the Look's were superior at which is why they got the rating they did.
All in all, they do a decent job as road pedal's but simply are not better than other equally priced options on the market *Speedplay*
I have these on my GIANT TCR Advanced SL1, with SRAM RED. Great pedals! They have a low profile, easy in and easy out (the new plate design works well and does not wear much), great power transfer, easy adjustability, and a smooth rotation.
I've used SPD's for years but elected to install the Keo 2 Max's on my new carbon bike. I can't believe how difficult it is to break them loose.
They're factory adjusted to the lowest pressure setting but I have to do a major high torque heal twist (to the outside) to get them to release. I have the greys on my Sidi's so I put red's on my other shoes but the red's are even harder to release. Defect or perhaps a break in period?
If you are comparing the feel of a Look Keo to a spd pedal I can understand your concern. The effort to release is entirely different especially considering the Look has a fixed front mounting point so you can't toe out at all.
You mentioned factory adjusted. If you hanven't tried get a hex wrench on the pedal and turn counter clockwise to see if the tension can be released some.
Have this pedal on my Tommasini Super Prestige and Trek Madone 6.5. Great release adjustment, larger platform, smooth rotation and low profile design. Stainless insert a big improvement from a wear perspective. Have had NO issues or concerns and would highly recommend this pedal. Ride safe and often.
I've read in some forums recently that there are problems with the KEO Max pedal spindle not loosening up. Is there a recall on these pedals or has this issue been resolved?
I understand the Look has rectified this issue but a recall wouldn't be issued because it poses no safety concern. All new pedal sets are shipping with a modified rubber seal but many dealers still have inventory of some with stiff seals.
In my experience, Realcyclist is great with returns and exchanges and has sent me exchanges with no cost to me. So if you find yourself with a stiff pedal you won't be stuck with it like you are with ebay or other online retailers.
No recall on the Keo 2 Max pedals. They are really nice, increased surface area under foot 12% , inlayed stainless wear protection and very lightweight. The only thing I have noticed is it took a few rides for the bearing seals to break in, now they spin like a top. If you have a sticky pair of seals LOOK will replace your axle set.
I believe the pictures for the gray composite and carbon models are switched...
...yeah the Keo pedal photos are switched, it should get fixed so that so people correctly see what they are purchasing.
