- Brunton SolarFlat Amorphous Solar Panel - 2008

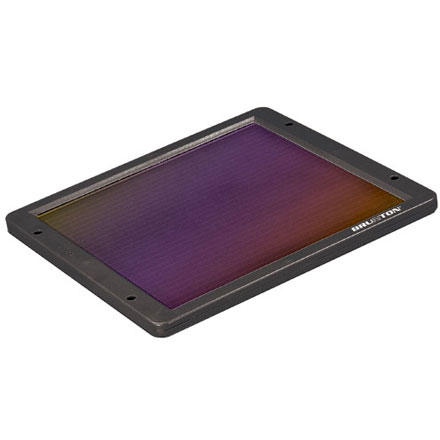

Brunton SolarFlat Amorphous Solar Panel - 2008 BCS
Available Colors / Styles
Be the first to upload your photo of the SolarFlat Amorphous Solar Panel. >
The Brunton SolarFlat Amorphous Solar Panel mounts to your RV, truck, boat, or roof to provide extra electrical power. So what if you played music and left your truck lights on for the last five hours? The SolarFlat has been charging your battery the entire time. Brunton used a weatherproof amorphous film that works even on low-light overcast days, and it's not harmed by rain or snow. The SolarFlat also includes a UV inhibitor to reduce the chances of heat damage.
Bottom Line: Backup power for home or on the road.
Talk shop with all the gear freaks out there: ask 'em questions, upload/browse photos, and give your 2¢.
The specs say this is about 14" X 13". That would
The specs say this is about 14" X 13". That would make it almost square, yet the picture very clearly show it is far from being a square. Which is correct??
By: John
August 31, 2009
it says the 1.8 watt is 14x5 so the picture is right
By: Yule & Bellow
September 8, 2009
Were can I learn how to install solar panels for homes, are there
Were can I learn how to install solar panels for homes, are there scholls close to Nerw Mexico?
By: Larry L Bellson
June 13, 2009
http://www.solarenergypal.com/review.php?id=4550e&gclid=
By: Dakka
June 15, 2009
what size panel will a 12 volt pump require
what size panel will a 12 volt pump require
By: bob heuser
May 11, 2009
These are both 12 volt panels, but unless your pump operates at less than 5 watts (or 1.8 watts for the small version), these will not work. These panels, and almost all portable solar panels, are designed to recharge the various batteries found in electronics and trickle-charge larger batteries, like automotive or laptop. So, if you were to operate the pump from a battery, these panels would recharge that battery, assuming the battery could be recharged and sufficient time was allowed to charge between uses (obviously, the larger the battery, the longer the charge time).
By: BAinUT
May 11, 2009
Will one of these 5W panels run a laptop computer?
Will one of these 5W panels run a laptop computer?
By: Duane Dennis
December 13, 2008
What is the minimum panel that will power a string of Xmas lights
What is the minimum panel that will power a string of Xmas lights - 50 LED "New Ray" lights - in Boston, in the winter. Collector will get x thousand footcandles, but not necessarily direct sunlight in the winter (it's Boston!) The small stake panel lit string lit for 10 hours after full charge in direct sunlight indoors but only 1/2 hour in overcast outdoors. Ideally want to have 3 strings powered. Installation is in semi-public location and theft is a risk. [We promised to put lights on tree at half-way house, so we are very motivated to get it done, but trying to avoid being stupid... sigh] thanks
By: Lucinda Seigel
December 2, 2008
The solar panels used to keep the batteries charged for my two
The solar panels used to keep the batteries charged for my two electric rod iron gates were stolen. Will this solar panel trickle charge the batteries for my gates, efficiently and effectively?
By: David Reiswig
December 2, 2008
can you mix panels that have different open volts like one with
can you mix panels that have different open volts like
one with 42 volts and one with 30 volts
By: dum2444606
September 26, 2008
I want to buy a solar panel that will run a utility light (25
I want to buy a solar panel that will run a utility light (25 to 50 watt) What size solar panel should I buy and what light do I buy?
By: pinson_jam2373985
August 22, 2008
I want to use the 5 watt panel for a deep cycle marine battery
I want to use the 5 watt panel for a deep cycle marine battery that runs my trolling motor. Will this product charge while I use my trolling motor?
By: edbass52314929
July 20, 2008
the math,12vdc x 30 amps= 360 watts of power used. A 5 watt panel would mean you are 355 watts short of what you need to run a trolling motor
By: joe
July 4, 2009
Will this solar panel provide power to my RV when not plugged
Will this solar panel provide power to my RV when not plugged in to 110?
By: emcorob2312417
July 18, 2008
Sure, but only 5W. That's not much power at all. 5W is great for charging your mobile phone or iPod, but your 1000W microwave will suck all the power up rather expeditiously.
By: Matt Fuller
July 20, 2008
If I wanted to provide enough recharging for three connected
If I wanted to provide enough recharging for three connected deep cycle marine batteries, how many of these panels would I need?
By: allen_2242294509
July 7, 2008
It completely depends upon the draw of these batteries.For some simple math, use the equation P=VI, where P = watts, v = voltage, and i = current or amps. Batteries commonly run at 14volts, you'll draw several amps, and you'll need more watts going in.For some comparison, my MacBook Pro (laptop) charger draws a full 85 watts to charge in 2-3 hours.You'll need a lot of these panels for three marine batteries. If you're just wanting something to keep the radio going, these panels will do the trick.Also, for connecting to a battery, I'd seriously look at this controller. It needs a minimum of 10 watt input:http://www.backcountry.com/store/BRU0149/Brunton-Solar
By: Matt Fuller
July 7, 2008
I want to hook this up to a battery that powers a winch. Will
I want to hook this up to a battery that powers a winch. Will it attach directly to the battery terminals to charge it?
By: mjeny2284239
June 29, 2008
Yes, this product includes a 12 ft cable, vehicle cable, battery clamps & link adaptor cable.
By: Matt Fuller
June 30, 2008
I have a 10000 BTU Window AC unit. How would I connect a solar
I have a 10000 BTU Window AC unit. How would I connect a solar panel to only run it and leave the rest of my house on city power?
By: weise.ben2271827
June 21, 2008
Most AC units draw more power than a small solar panel can provide, and wiring solar power to your home requires a skilled electrician. Many states offer tax credits for installing solar panels. If you're serious about wanting to harness solar energy I recommend that you find a local person that specializes in solar installations. You can begin your search here: http://www.solarelectricpower.org
By: Matt Fuller
June 30, 2008
how does this connect to a device?
how does this connect to a device?
By: spencetayl2150769
April 1, 2008
Includes 12 ft cable, vehicle cable, battery clamps & link adaptor cable
By: Elias Littenberg
May 21, 2008
Change me.
Out of Stock
2008 Model No Longer Available
We have a lot more Batteries and Solar Power than that
Batteries and Solar Power- Dimensions:
- [5] 14 x 13.3 x 0.6in (38 x 34 x 2cm); [1.8] 14 x 5 x 0.6 (38 x 13 x 2cm)
- Power Output:
- 5 or 1.8 Watts (see options)
- Weight:
- [5] 3lb 5oz (1502g); [1.8] 15.8oz (448g)
- Recommended Use:
- RV, home, boat, car
- Manufacturer Warranty:
- 1 Year
